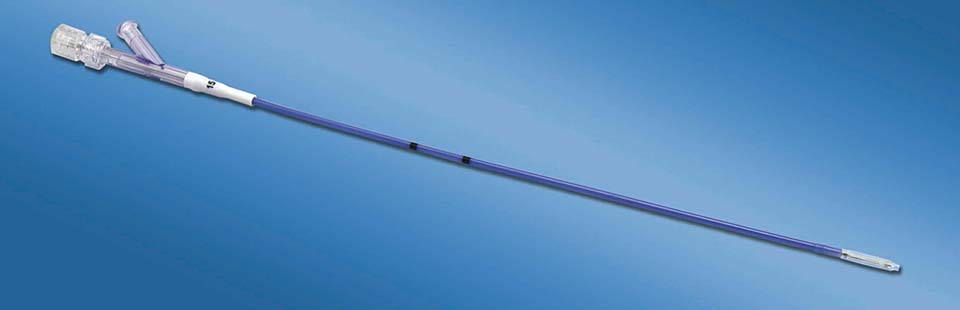

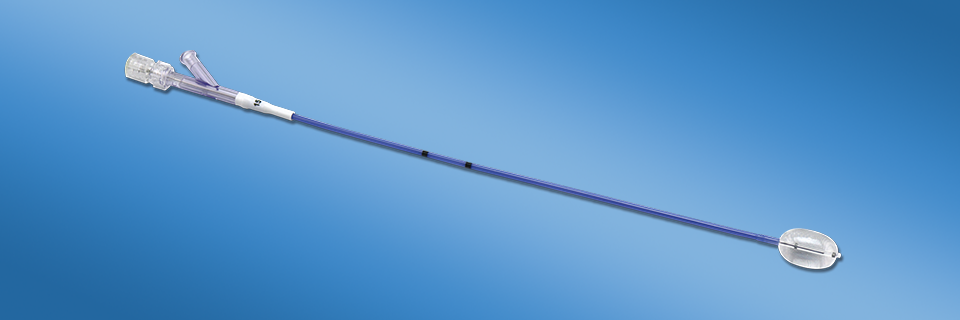

Kyphoplasty Balloon Catheter

Intended use:

This device is mainly used in Percutaneous Kyphoplasty(PKP) operation to dilate vertebral body and form a cavum which is for injecting bone cement to recover and stabilize vertebral body.

Features:

  • Kyphoplasty Balloon Catheter is designed for correcting compression fractures and restoring vertebral body height. Doctors should choose
    appropriate balloon for dilation according to fracture types;
  • Different OD of the sheath can be applied to different working channel to realize accurate dilation. Different shapes of the balloon can adapt to different thoracic vertebra, lumbar vertebra as well as other types of fractures;
  • The balloon materials feature with excellent characteristics, such as fine supportiveness, biocompatibility, biological persistence, surface anti-biodegradation and environmental stress cracking resistance;
  • Standard four-wing pleating process ensures excellent passability after repeated inflation;
  • Each balloon has passed the pressure and seal test before leaving the factory. Strict quality control measures minimize the risk of balloon burst and leakage.

Specifications:

Model Size Chaneel I.D. Overall Length Maximum Volume PSI Rating Balloon Shape
KB0210S



11G

10



≥3.1mm



280mm

3CC





400PSI

Cylindrical Type
KB0115S 15 4CC Peanut Type
KB0120S 20 5CC Peanut Type
KB0210



8G

10



≥3.6mm



315mm

4CC Cylindrical Type
KB0115 15 4CC Peanut Type
KB0120 20 6CC Peanut Type

 Customization is also acceptable to our balloons.
